LA 280 DESIGN COMMUNICATIONS 1 EXPLODING THE OVERLAY (20 points)

Rhino Tutorials 1 and 2 available at the LA 280 Channel on Illinois Mediaspace (login required)

ASSIGNED: Friday, November 19

DUE: Wednesday, December 1

In a new Rhino file, create a 50-foot by 50-foot closed polyline. Like in the tutorial video, this will be your mode base.

Using the LOFT command, connect two different control point curves into a smooth surface. Place 3D objects of different shapes and heights within your surface to create a 3D composition. Experiment with both solid and polysurfaces in this exercise.

You can use MOVE, COPY, SCALE, ROTATE, and the Gumball function to arrange the objects on your surface. Modify your objects using MOVEFACE, MOVEEDGE, or any other commands you want to explore.

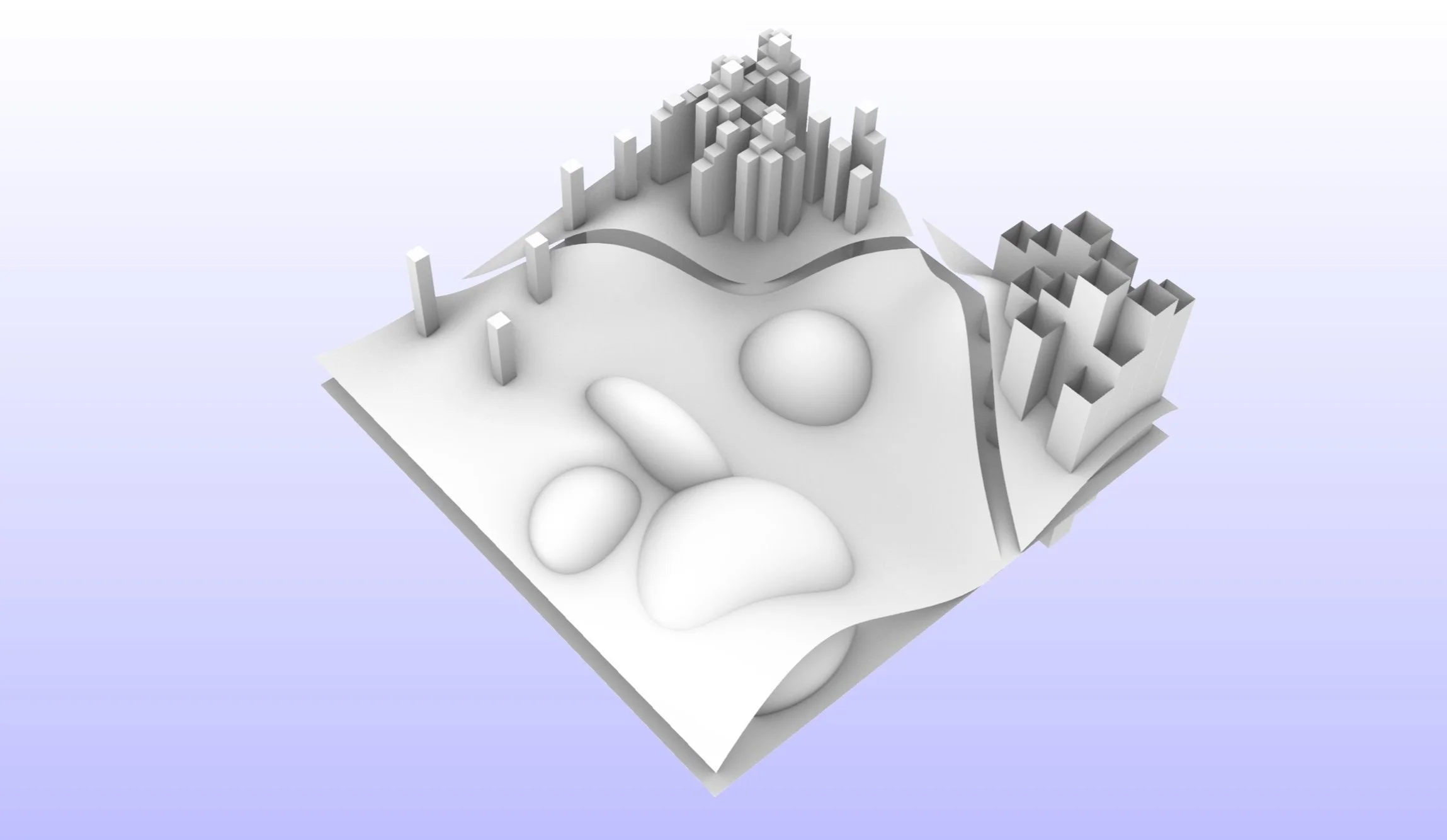

Finally, in the Perspective view, use the command VIEWCAPTURETOFILE to save a JPEG of your model. Save the file as LastName_FirstName.JPG and upload to Box.
